SIHIExtruvac
|
| |
|
| |
| |
Liquid ring vacuum pumps
of the series
SIHIextruvac LEME are
single-stage
displacement pumps
of uncomplicated and
robust construction with
the following particular
features like
non-polluting due to nearly
isothermal compression,
oil-free
(no lubrication in the
working chamber), handling
of nearly all gases and
vapours, small
quantities of entrained
liquid can be handled,
easy maintenance and
reliable operation, low
noise and nearly free
from vibration,
protection against
cavitation as standard,
incorporated dirt drain,
incorporated central
drain and no metallic
contact of the rotating
parts.
Applications:
Handling and exhausting
of dry and humid gases.
Entrained liquid can be
handled during normal
duty. The pumps are
applied in all fields
where a pressure
of 100 to 900 mbar
must be created by robust
vacuum pumps. These pumps
are especially

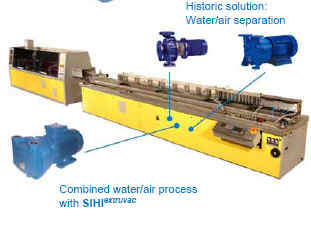

developed for the use in
calibration tables,
where the ability of
additional water handling
capability (max. 7 m3/h)
is needed.
Technical Data:
Suction volume
flow: up to 170 m3/h
Suction pressure: 100 up
to 1013 mbar
Shaft seal: mechanical
seal
Materials: grey cast iron
Download further
Information
Product
Flyer - SIHIextruvac LEME
Catalogue
- LEME 130/155 threaded
connection, 30 - 170
m3/h, 100 - 1013 mbar
|
| |
|
|
|
